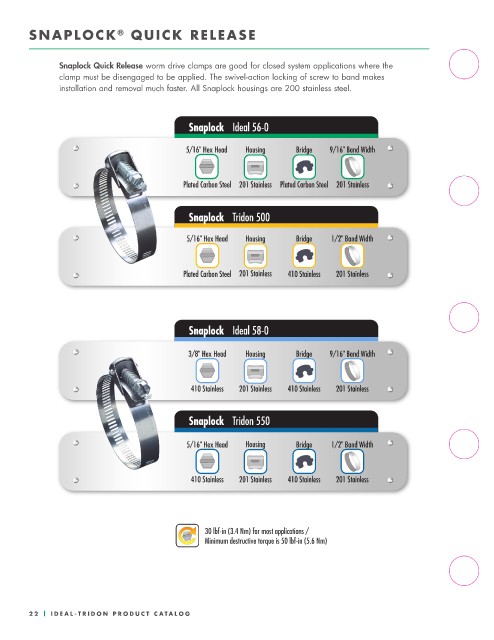

SNAPLOCK QUICK RELEASE
®

Snaplock Quick Release worm drive clamps are good for closed system applications where the
clamp must be disengaged to be applied. The swivel-action locking of screw to band makes
installation and removal much faster. All Snaplock housings are 200 stainless steel.

Snaplock Ideal 56-0

5/16" Hex Head Housing Bridge 9/16" Band Width

Plated Carbon Steel 201 Stainless Plated Carbon Steel 201 Stainless

Snaplock Tridon 500

5/16" Hex Head Housing Bridge 1/2" Band Width

Plated Carbon Steel 201 Stainless 410 Stainless 201 Stainless

Snaplock Ideal 58-0

3/8" Hex Head Housing Bridge 9/16" Band Width

410 Stainless 201 Stainless 410 Stainless 201 Stainless

Snaplock Tridon 550

5/16" Hex Head Housing Bridge 1/2" Band Width

410 Stainless 201 Stainless 410 Stainless 201 Stainless

30 lbf-in (3.4 Nm) for most applications /
Minimum destructive torque is 50 lbf-in (5.6 Nm)
