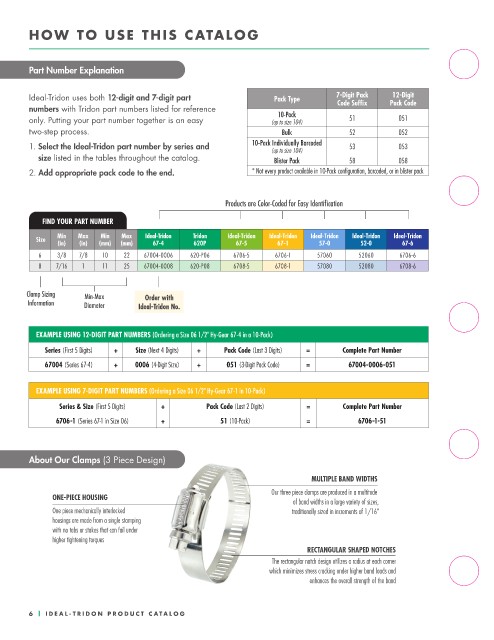

HOW TO USE THIS CATALOG




        Part Number Explanation


                                                                                                  12-Digit
        Ideal-Tridon uses both 12-digit and 7-digit part             Pack Type      7-Digit Pack   Pack Code
                                                                                     Code Suffix
        numbers with Tridon part numbers listed for reference         10-Pack
        only. Putting your part number together is an easy          (up to size 104)    51          051
        two-step process.                                              Bulk             52          052
        1.  Select the Ideal-Tridon part number by series and   10-Pack Individually Barcoded  53   053
                                                                    (up to size 104)
          size listed in the tables throughout the catalog.          Blister Pack       58          058
        2. Add appropriate pack code to the end.               * Not every product available in 10-Pack configuration, barcoded, or in blister pack



                                                         Products are Color-Coded for Easy Identification

            FIND YOUR PART NUMBER
           Size  Min  Max  Min   Max   Ideal-Tridon  Tridon  Ideal-Tridon   Ideal-Tridon   Ideal-Tridon   Ideal-Tridon   Ideal-Tridon
               (in)  (in)  (mm)  (mm)  67-4      620P      67-5       67-1      57-0      52-0       67-6
           6   3/8   7/8  10    22   67004-0006  620-P06   6706-5    6706-1     57060     52060     6706-6
           8   7/16  1    11    25   67004-0008  620-P08   6708-5    6708-1     57080     52080     6708-6



        Clamp Sizing   Min-Max       Order with
        Information   Diameter     Ideal-Tridon No.



          EXAMPLE USING 12-DIGIT PART NUMBERS (Ordering a Size 06 1/2" Hy-Gear 67-4 in a 10-Pack)

            Series (First 5 Digits)  +  Size (Next 4 Digits)  +  Pack Code (Last 3 Digits)  =  Complete Part Number
            67004 (Series 67-4)  +  0006 (4-Digit Size)  +  051 (3-Digit Pack Code)  =  67004-0006-051


          EXAMPLE USING 7-DIGIT PART NUMBERS (Ordering a Size 06 1/2" Hy-Gear 67-1 in 10-Pack)
                Series & Size (First 5 Digits)  +   Pack Code (Last 2 Digits)  =      Complete Part Number
               6706-1 (Series 67-1 in Size 06)  +       51 (10-Pack)         =            6706-1-51




        About Our Clamps (3 Piece Design)

                                                                              MULTIPLE BAND WIDTHS

                                                                    Our three piece clamps are produced in a multitude
              ONE-PIECE HOUSING
                                                                          of band widths in a large variety of sizes,
              One piece mechanically interlocked                         traditionally sized in increments of 1/16"
              housings are made from a single stamping
              with no tabs or stakes that can fail under
              higher tightening torques
                                                                             RECTANGULAR SHAPED NOTCHES
                                                                    The rectangular notch design utilizes a radius at each corner
                                                                    which minimizes stress cracking under higher band loads and
                                                                              enhances the overall strength of the band
