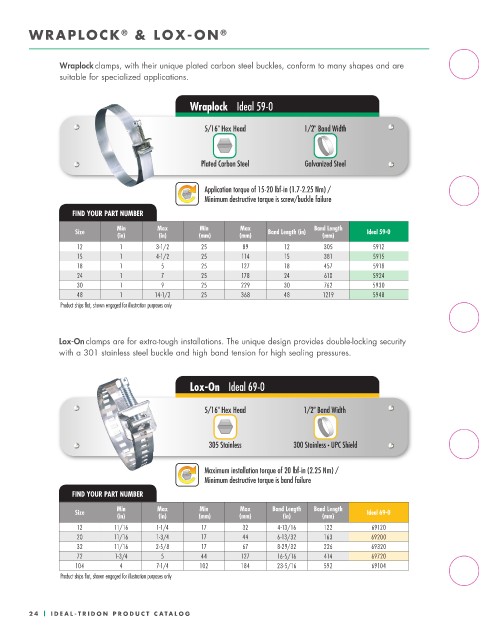

Page 24 - Ideal Catalog 2021

WRAPLOCK & LOX-ON ®
®

Wraplock clamps, with their unique plated carbon steel buckles, conform to many shapes and are

suitable for specialized applications.

Wraplock Ideal 59-0

5/16" Hex Head 1/2" Band Width

Plated Carbon Steel Galvanized Steel

Application torque of 15-20 lbf-in (1.7-2.25 Nm) /
Minimum destructive torque is screw/buckle failure
FIND YOUR PART NUMBER

Min Max Min Max Band Length
Size (in) (in) (mm) (mm) Band Length (in) (mm) Ideal 59-0
12 1 3-1/2 25 89 12 305 5912
15 1 4-1/2 25 114 15 381 5915
18 1 5 25 127 18 457 5918
24 1 7 25 178 24 610 5924
30 1 9 25 229 30 762 5930
48 1 14-1/2 25 368 48 1219 5948
Product ships flat, shown engaged for illustration purposes only

Lox-On clamps are for extra-tough installations. The unique design provides double-locking security

with a 301 stainless steel buckle and high band tension for high sealing pressures.

Lox-On Ideal 69-0

5/16" Hex Head 1/2" Band Width

305 Stainless 300 Stainless • UPC Shield

Maximum installation torque of 20 lbf-in (2.25 Nm) /
Minimum destructive torque is band failure
FIND YOUR PART NUMBER

Size Min Max Min Max Band Length Band Length Ideal 69-0
(in) (in) (mm) (mm) (in) (mm)
12 11/16 1-1/4 17 32 4-13/16 122 69120
20 11/16 1-3/4 17 44 6-13/32 163 69200
32 11/16 2-5/8 17 67 8-29/32 226 69320
72 1-3/4 5 44 127 16-5/16 414 69720
104 4 7-1/4 102 184 23-5/16 592 69104
Product ships flat, shown engaged for illustration purposes only
