Page 25 - Ideal Catalog 2021

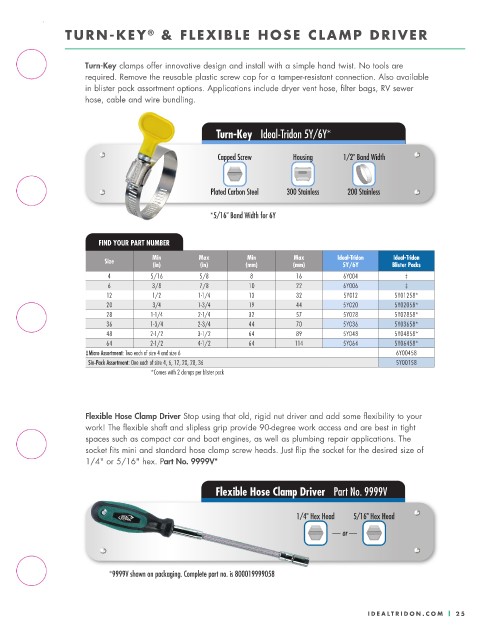

TURN-KEY & FLEXIBLE HOSE CLAMP DRIVER
®

Turn-Key clamps offer innovative design and install with a simple hand twist. No tools are
required. Remove the reusable plastic screw cap for a tamper-resistant connection. Also available
in blister pack assortment options. Applications include dryer vent hose, filter bags, RV sewer
hose, cable and wire bundling.

Turn-Key Ideal-Tridon 5Y/6Y*

Capped Screw Housing 1/2" Band Width

Plated Carbon Steel 300 Stainless 200 Stainless

*5/16" Band Width for 6Y

FIND YOUR PART NUMBER

Size Min Max Min Max Ideal-Tridon Ideal-Tridon
(in) (in) (mm) (mm) 5Y/6Y Blister Packs
4 5/16 5/8 8 16 6Y004 ‡
6 3/8 7/8 10 22 6Y006 ‡
12 1/2 1-1/4 13 32 5Y012 5Y01258*
20 3/4 1-3/4 19 44 5Y020 5Y02058*
28 1-1/4 2-1/4 32 57 5Y028 5Y02858*
36 1-3/4 2-3/4 44 70 5Y036 5Y03658*
48 2-1/2 3-1/2 64 89 5Y048 5Y04858*
64 2-1/2 4-1/2 64 114 5Y064 5Y06458*
‡Micro Assortment: Two each of size 4 and size 6 6Y00458
Six-Pack Assortment: One each of size 4, 6, 12, 20, 28, 36 5Y00158
*Comes with 2 clamps per blister pack

Flexible Hose Clamp Driver Stop using that old, rigid nut driver and add some flexibility to your
work! The flexible shaft and slipless grip provide 90-degree work access and are best in tight
spaces such as compact car and boat engines, as well as plumbing repair applications. The
socket fits mini and standard hose clamp screw heads. Just flip the socket for the desired size of
1/4" or 5/16" hex. Part No. 9999V*

Flexible Hose Clamp Driver Part No. 9999V

1/4" Hex Head 5/16" Hex Head
__ __
or

*9999V shown on packaging. Complete part no. is 800019999058

24 | IDEAL-TRIDON PRODUCT CA T ALOG IDEAL TRIDON.COM | 25
