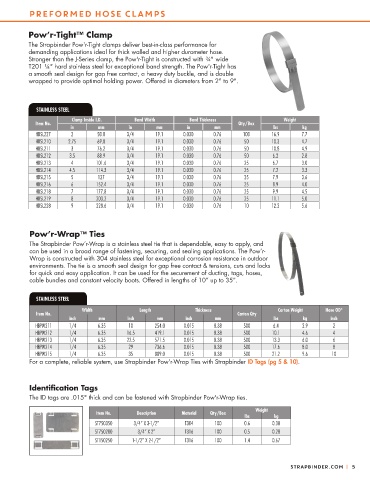

PREFORMED HOSE CLAMPS
Pow’r-Tight™ Clamp
The Strapbinder Pow'r-Tight clamps deliver best-in-class performance for
demanding applications ideal for thick walled and higher durometer hose.
Stronger than the J-Series clamp, the Pow'r-Tight is constructed with 3/4" wide
T201 1/4" hard stainless steel for exceptional band strength. The Pow'r-Tight has
a smooth seal design for gap free contact, a heavy duty buckle, and is double
wrapped to provide optimal holding power. Offered in diameters from 2" to 9".
STAINLESS STEEL
Clamp Inside I.D. Band Width Band Thickness Weight
Item No. Qty/Box
in mm in mm in mm lbs kg
HDSL227 2 50.8 3/4 19.1 0.030 0.76 100 16.9 7.7
HDSL210 2.75 69.8 3/4 19.1 0.030 0.76 50 10.3 4.7
STAINLESS STEEL
HDSL211 3 76.2 3/4 19.1 0.030 0.76 50 10.8 4.9
HDSL212 3.5 88.9 3/4 19.1 0.030 0.76 50 6.2 2.8
HDSL213 4 101.6 3/4 19.1 0.030 0.76 25 6.7 3.0
HDSL214 4.5 114.3 3/4 19.1 0.030 0.76 25 7.2 3.3
HDSL215 5 127 3/4 19.1 0.030 0.76 25 7.9 3.6
HDSL216 6 152.4 3/4 19.1 0.030 0.76 25 8.9 4.0
HDSL218 7 177.8 3/4 19.1 0.030 0.76 25 9.9 4.5
HDSL219 8 203.2 3/4 19.1 0.030 0.76 25 11.1 5.0
HDSL228 9 228.6 3/4 19.1 0.030 0.76 10 12.2 5.6
Pow’r-Wrap™ Ties
The Strapbinder Pow’r-Wrap is a stainless steel tie that is dependable, easy to apply, and
can be used in a broad range of fastening, securing, and sealing applications. The Pow’r-
Wrap is constructed with 304 stainless steel for exceptional corrosion resistance in outdoor
environments. The tie is a smooth seal design for gap free contact & tensions, cuts and locks
for quick and easy application. It can be used for the securement of ducting, tags, hoses,
cable bundles and constant velocity boots. Offered in lengths of 10” up to 35”.
STAINLESS STEEL
Width Length Thickness Carton Weight Hose OD*
Item No. Carton Qty
inch mm inch mm inch mm lbs kg inch
HBPW211 1/4 6.35 10 254.0 0.015 0.38 500 6.4 2.9 2
HBPW212 1/4 6.35 16.5 419.1 0.015 0.38 500 10.1 4.6 4
HBPW213 1/4 6.35 22.5 571.5 0.015 0.38 500 13.3 6.0 6
HBPW214 1/4 6.35 29 736.6 0.015 0.38 500 17.6 8.0 8
HBPW215 1/4 6.35 35 889.0 0.015 0.38 500 21.2 9.6 10
For a complete, reliable system, use Strapbinder Pow'r-Wrap Ties with Strapbinder ID Tags (pg 5 & 10).
Identification Tags
The ID tags are .015" thick and can be fastened with Strapbinder Pow'r-Wrap ties.
Weight
Item No. Description Material Qty/Box
lbs kg
ST750350 3/4” X 3-1/2” T304 100 0.6 0.30
ST750200 3/4” X 2” T316 100 0.5 0.20
ST150250 1-1/2” X 2-1/2” T316 100 1.4 0.67
