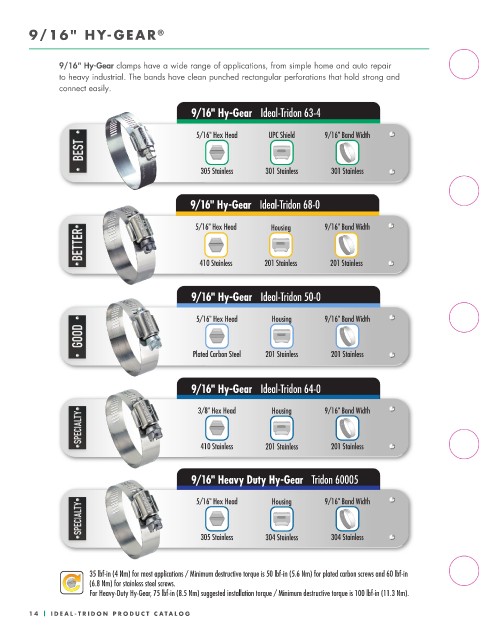

9/16" HY-GEAR ®

9/16" Hy-Gear clamps have a wide range of applications, from simple home and auto repair
to heavy industrial. The bands have clean punched rectangular perforations that hold strong and
connect easily.

9/16" Hy-Gear Ideal-Tridon 63-4

5/16" Hex Head UPC Shield 9/16" Band Width

305 Stainless 301 Stainless 301 Stainless

9/16" Hy-Gear Ideal-Tridon 68-0

5/16" Hex Head Housing 9/16" Band Width

410 Stainless 201 Stainless 201 Stainless

9/16" Hy-Gear Ideal-Tridon 50-0

5/16" Hex Head Housing 9/16" Band Width

Plated Carbon Steel 201 Stainless 201 Stainless

9/16" Hy-Gear Ideal-Tridon 64-0

3/8" Hex Head Housing 9/16" Band Width

410 Stainless 201 Stainless 201 Stainless

9/16" Heavy Duty Hy-Gear Tridon 60005

5/16" Hex Head Housing 9/16" Band Width

305 Stainless 304 Stainless 304 Stainless

35 lbf-in (4 Nm) for most applications / Minimum destructive torque is 50 lbf-in (5.6 Nm) for plated carbon screws and 60 lbf-in
(6.8 Nm) for stainless steel screws.
For Heavy-Duty Hy-Gear, 75 lbf-in (8.5 Nm) suggested installation torque / Minimum destructive torque is 100 lbf-in (11.3 Nm).
