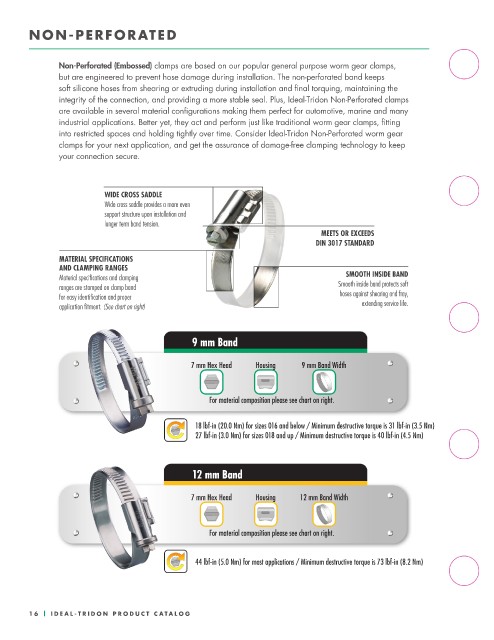

NON-PERFORATED

Non-Perforated (Embossed) clamps are based on our popular general purpose worm gear clamps,
but are engineered to prevent hose damage during installation. The non-perforated band keeps
soft silicone hoses from shearing or extruding during installation and final torquing, maintaining the
integrity of the connection, and providing a more stable seal. Plus, Ideal-Tridon Non-Perforated clamps
are available in several material configurations making them perfect for automotive, marine and many
industrial applications. Better yet, they act and perform just like traditional worm gear clamps, fitting
into restricted spaces and holding tightly over time. Consider Ideal-Tridon Non-Perforated worm gear
clamps for your next application, and get the assurance of damage-free clamping technology to keep
your connection secure.

WIDE CROSS SADDLE
Wide cross saddle provides a more even
support structure upon installation and
longer term band tension.
MEETS OR EXCEEDS
DIN 3017 STANDARD
MATERIAL SPECIFICATIONS
AND CLAMPING RANGES
Material specifications and clamping SMOOTH INSIDE BAND
ranges are stamped on clamp band Smooth inside band protects soft
for easy identification and proper hoses against shearing and fray,
application fitment. (See chart on right) extending service life.

9 mm Band

7 mm Hex Head Housing 9 mm Band Width

For material composition please see chart on right.

18 lbf-in (20.0 Nm) for sizes 016 and below / Minimum destructive torque is 31 lbf-in (3.5 Nm)
27 lbf-in (3.0 Nm) for sizes 018 and up / Minimum destructive torque is 40 lbf-in (4.5 Nm)

12 mm Band

7 mm Hex Head Housing 12 mm Band Width

For material composition please see chart on right.

44 lbf-in (5.0 Nm) for most applications / Minimum destructive torque is 73 lbf-in (8.2 Nm)
