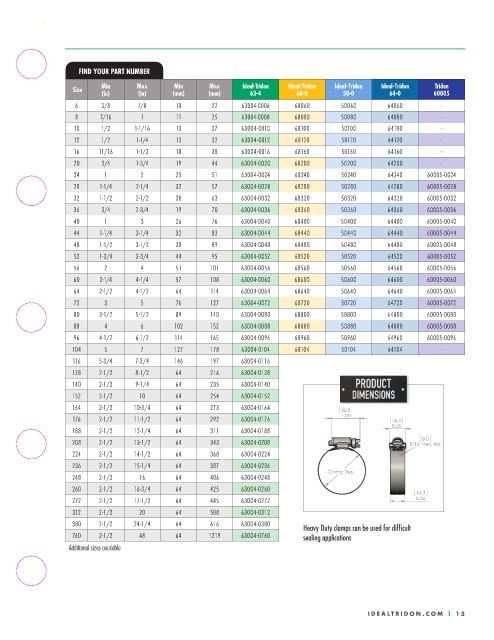

FIND YOUR PART NUMBER
Min Max Min Max Ideal-Tridon Ideal-Tridon Ideal-Tridon Ideal-Tridon Tridon
Size (in) (in) (mm) (mm) 63-4 68-0 50-0 64-0 60005
6 3/8 7/8 10 22 63004-0006 68060 50060 64060 -
8 7/16 1 11 25 63004-0008 68080 50080 64080 -
10 1/2 1-1/16 13 27 63004-0010 68100 50100 64100 -
12 1/2 1-1/4 13 32 63004-0012 68120 50120 64120 -
16 11/16 1-1/2 18 38 63004-0016 68160 50160 64160 -
20 3/4 1-3/4 19 44 63004-0020 68200 50200 64200 -
24 1 2 25 51 63004-0024 68240 50240 64240 60005-0024
28 1-1/4 2-1/4 32 57 63004-0028 68280 50280 64280 60005-0028
32 1-1/2 2-1/2 38 63 63004-0032 68320 50320 64320 60005-0032
36 3/4 2-3/4 19 70 63004-0036 68360 50360 64360 60005-0036
40 1 3 26 76 63004-0040 68400 50400 64400 60005-0040
44 1-1/4 3-1/4 32 83 63004-0044 68440 50440 64440 60005-0044
48 1-1/2 3-1/2 38 89 63004-0048 68480 50480 64480 60005-0048
52 1-3/4 3-3/4 44 95 63004-0052 68520 50520 64520 60005-0052
56 2 4 51 101 63004-0056 68560 50560 64560 60005-0056
60 2-1/4 4-1/4 57 108 63004-0060 68600 50600 64600 60005-0060
64 2-1/2 4-1/2 64 114 63004-0064 68640 50640 64640 60005-0064
72 3 5 76 127 63004-0072 68720 50720 64720 60005-0072
80 3-1/2 5-1/2 89 140 63004-0080 68800 50800 64800 60005-0080
88 4 6 102 152 63004-0088 68880 50880 64880 60005-0088
96 4-1/2 6-1/2 114 165 63004-0096 68960 50960 64960 60005-0096
104 5 7 127 178 63004-0104 68104 50104 64104 -
116 5-3/4 7-3/4 146 197 63004-0116
128 2-1/2 8-1/2 64 216 63004-0128
140 2-1/2 9-1/4 64 235 63004-0140
152 2-1/2 10 64 254 63004-0152
164 2-1/2 10-3/4 64 273 63004-0164
176 2-1/2 11-1/2 64 292 63004-0176
188 2-1/2 12-1/4 64 311 63004-0188
208 2-1/2 13-1/2 64 343 63004-0208
224 2-1/2 14-1/2 64 368 63004-0224
236 2-1/2 15-1/4 64 387 63004-0236
248 2-1/2 16 64 406 63004-0248
260 2-1/2 16-3/4 64 425 63004-0260
272 2-1/2 17-1/2 64 445 63004-0272
312 2-1/2 20 64 508 63004-0312
380 2-1/2 24-1/4 64 616 63004-0380
Heavy Duty clamps can be used for difficult
760 2-1/2 48 64 1219 63004-0760 sealing applications
Additional sizes available
