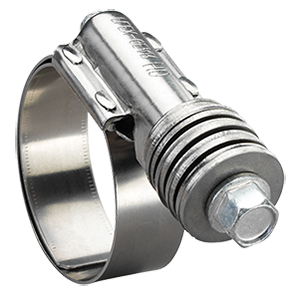

Flex-Gear® clamps use a Belleville spring design to eliminate "cold flow" leakage that adjusts with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. Flex-Gear® clamps are an excellent choice for fluctuating temperature applications and thermal compensation.

Features and Benefits: Belleville spring and clamp construction is built to respond to constant temperature fluctuations. The larger, heavier-gauge, precision-formed springs provide higher rates of band tension and adjustment for a more dependable seal. Inner liner protects against shearing of the hose surfaces.


Size Min (in) Max (in) Min (mm) Max (mm) Ideal 43 Ideal 47
10 9/16 1-1/16 14 27 43010 47010
12 5/8 1-1/4 16 32 43012 47012
16 13/16 1-1/2 21 38 43016 47016
20 13/16 1-3/4 20 44 43020 47020
24 1-1/16 2 27 51 43024 47024
28 1-5/16 2-1/4 33 57 43028 47028
32 1-9/16 2-1/2 40 63 43032 47032
36 1-13/16 2-3/4 46 70 43036 47036
40 2-1/16 3 52 76 43040 47040
44 2-5/16 3-1/4 59 82 43044 47044
48 2-9/16 3-1/2 65 89 43048 47048

Size Min (in) Max (in) Min (mm) Max (mm) Ideal 41 Ideal 45
175 1 1-3/4 25 45 41175 45175
212 1-1/4 2-1/8 32 54 41200 45200
262 1-3/4 2-5/8 45 67 41250 45250
312 2-1/4 3-1/8 57 79 41300 45300
362 2-3/4 3-5/8 70 92 41350 45350
412 3-1/4 4-1/8 83 105 41400 45400
462 3-3/4 4-5/8 95 117 41450 45450
512 4-1/4 5-1/8 108 130 41500 45500
562 4-3/4 5-5/8 121 143 41550 45550
612 5-1/4 6-1/8 133 155 41600 45600
662 5-3/4 6-5/8 146 168 41650 45650
712 6-1/4 7-1/8 159 181 41700 45700
762 6-3/4 7-5/8 172 193 41750 45750
812 7-1/4 8-1/8 184 206 41800 45800
862 7-3/4 8-5/8 197 219 41850 45850
912 8-1/4 9-1/8 210 232 41900 45900

Additional Sizes Available
